Resin Fiber Disc — Coated Abrasive Disc for Metal Sanding & Stock Removal

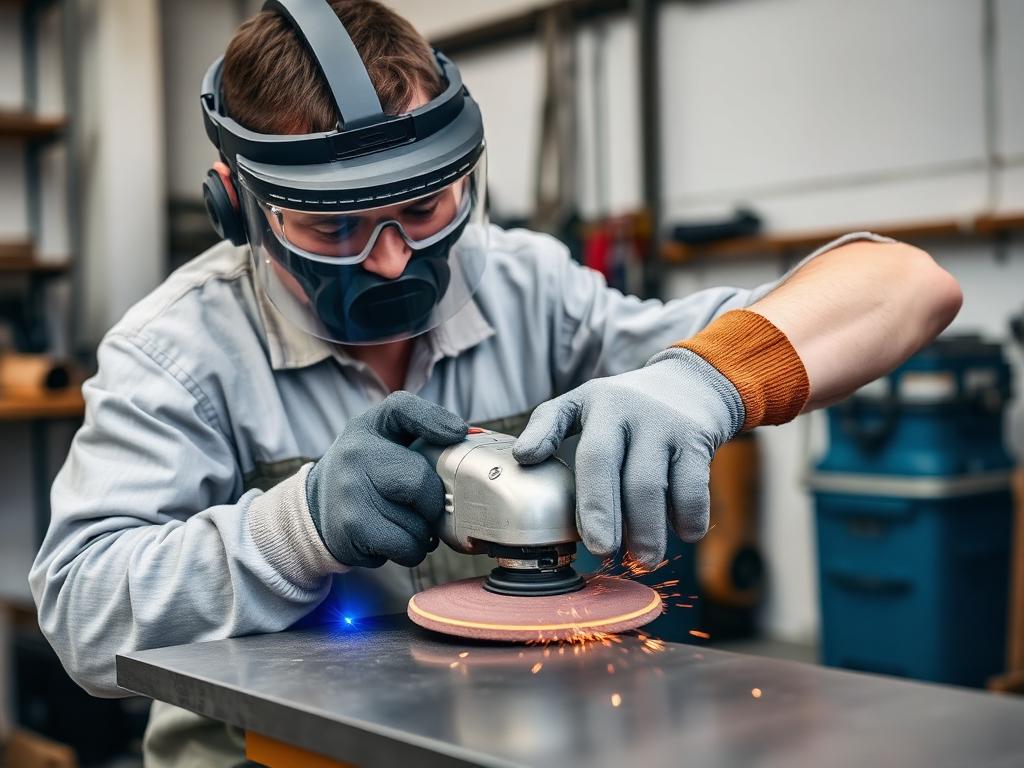

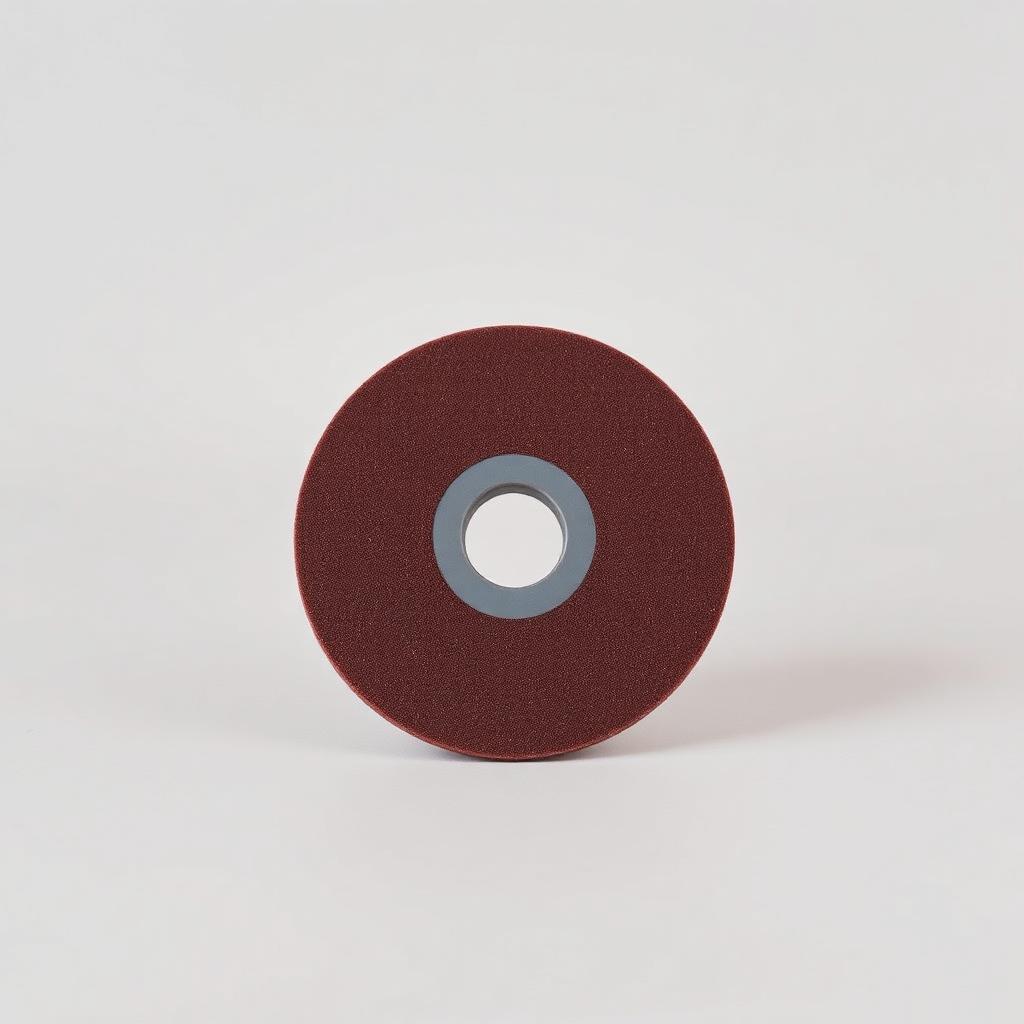

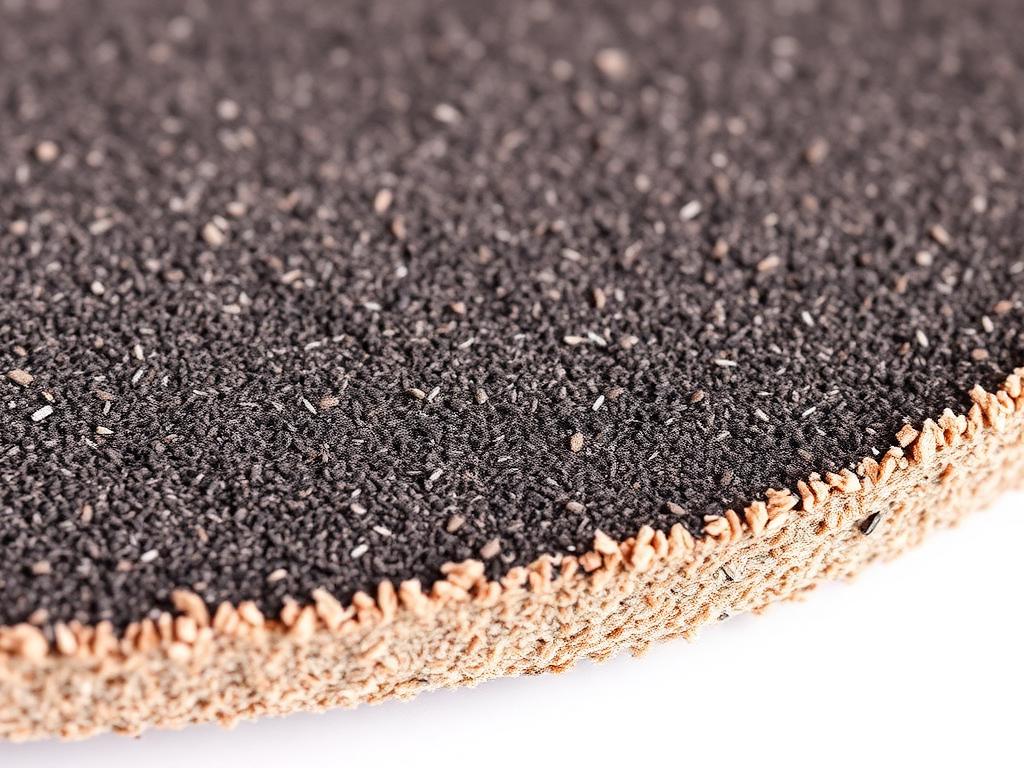

A resin fiber disc is a flat coated abrasive: abrasive grain is bonded with resin onto a stiff vulcanised fibre backing, with a central hole for mounting. It is not used on its own — it is fitted to a firm or semi-flexible backing pad on an angle grinder, and the pad provides the support behind the abrasive. Because the abrasive layer sits directly on a rigid backing, the disc works aggressively and flat, which makes it a stock-removal and surface-preparation product rather than a polishing product. Fabricators, welders, millwrights, steel processors and auto body shops use it wherever material, weld metal, rust or coating has to come off quickly and the surface then has to be blended.

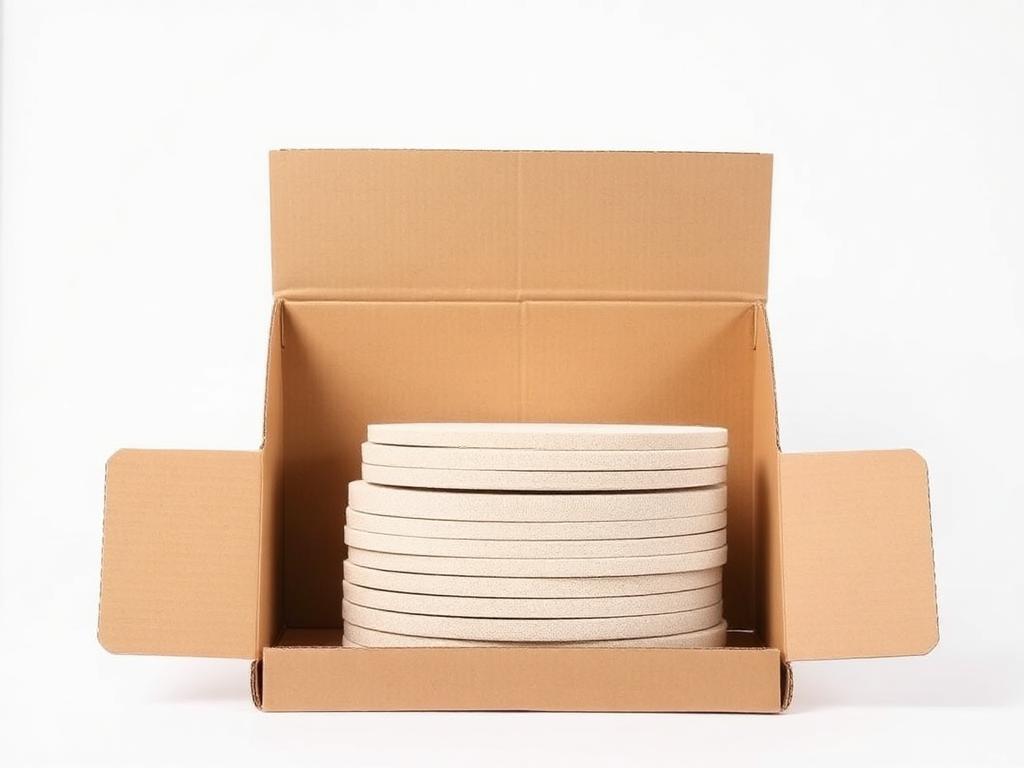

A typical sequence starts with a coarse disc to remove weld crown, mill scale, rust or old coating, then moves through one or two finer grits to blend the worked area into the surrounding surface. In fabrication it prepares plate edges and weld joints; in maintenance it strips corrosion back to sound metal; in vehicle repair it removes paint and filler before refinishing. Because the disc is consumable and the grit sequence is chosen per job, discs are usually bought in boxes per diameter and grit rather than individually.

Resin fiber discs are supplied with different abrasive grains. Aluminium oxide is the general-purpose grain used on mild and carbon steel and on general fabrication work. Zirconia alumina is a tougher grain generally selected for heavier stock removal and for harder or work-hardening materials, including stainless steel. Ceramic grain is used where a longer-lasting, high-pressure grinding action is required on demanding materials. Grain selection also interacts with the workpiece: for stainless steel and other applications where iron contamination matters, contaminant-free or iron-free specifications are requested explicitly in the enquiry and confirmed against supplier documentation.

Coarse grits remove material fastest and leave the deepest scratch pattern; fine grits remove less material and leave a finer finish. In practice buyers work backwards from the finish they need: choose the finest grit that will still remove the material in reasonable time, then plan one or two intermediate steps to erase the scratch pattern from the coarser disc. Jumping several grit steps at once usually costs more time than it saves, because the finer disc has to erase scratches it was never intended to remove. If you tell us the material, the amount to be removed and the finish required, the grit sequence can be discussed with the supplier before quoting.

Both are angle-grinder abrasives for metal, and many shops use them side by side. A resin fiber disc presents a single flat abrasive layer on a rigid fibre backing and needs a backing pad; it cuts flat and is generally chosen for direct stock removal and coating or rust stripping over larger areas. A flap disc presents overlapping abrasive flaps that wear away progressively and is generally chosen for weld blending, contour work and a smoother transition between grinding and finishing. Where the surface is flat and the priority is removing material or coating, the fiber disc is often the simpler choice; where the priority is a blended finish on and around a weld, the flap disc usually is.

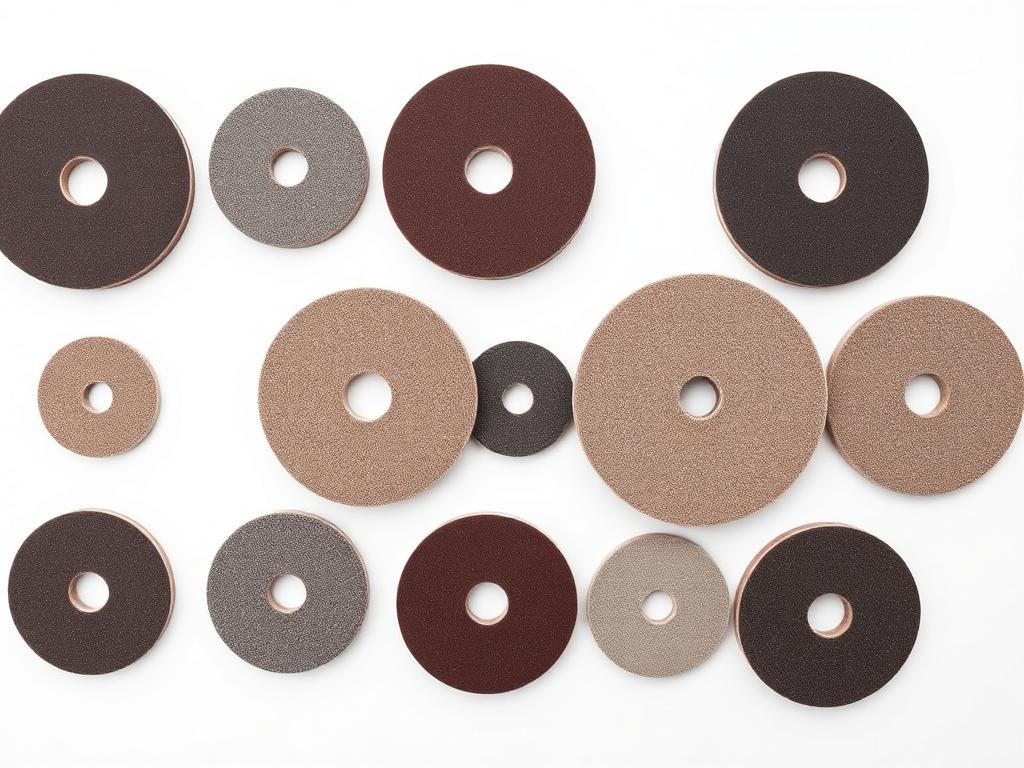

Available specifications include disc diameter, centre hole size, abrasive grain (aluminium oxide, zirconia alumina, ceramic), grit, backing weight and pack quantity, together with the matching backing pad where required. These are configurable options within this canonical product, not separate products, and no configuration is presented as stocked until it is confirmed. Supplier grade names, factory codes and manufacturer brands are not published.

Maximum operating speed, machine compatibility, guarding and personal protective equipment requirements are set by the manufacturer of the specific item supplied and by the tool manufacturer. Allzone publishes no operating data here; the manufacturer's markings and instructions for the item actually supplied always govern use.

Send the disc diameter and centre hole, the grit or grit range, the abrasive grain if you already know it, the workpiece material, the application (stock removal, weld blending, rust or paint removal, surface preparation), the quantity and the pack size you buy in. Tell us if you also need backing pads, and whether a contaminant-free specification is required for stainless steel work.
