TIG Welding Rods — GTAW Filler Rods for Precision & Code Welding

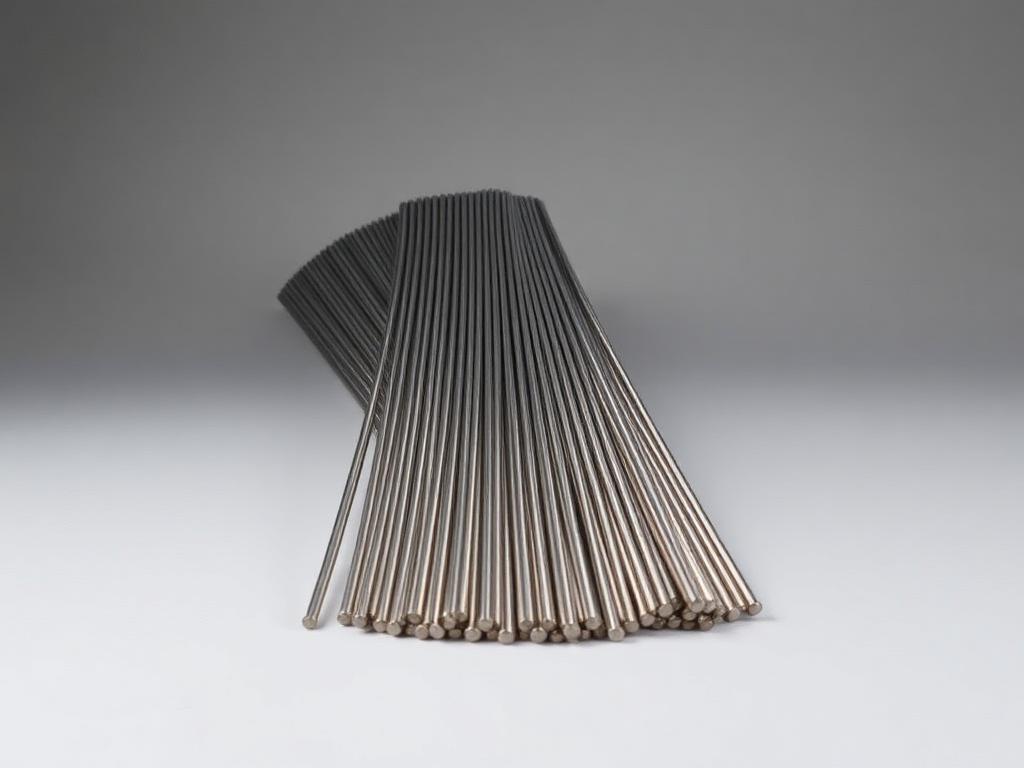

TIG filler rods are bare, straight-cut lengths of filler metal added by hand into an arc struck from a non-consumable tungsten electrode under an inert gas shield. Because the filler is separate from the arc and the shielding is inert, GTAW gives the cleanest and most controllable weld of the common processes — which is why it is chosen for root passes, thin sections, stainless and nickel alloy work, sanitary fabrication and anything where appearance and weld integrity matter more than deposition rate.

Carbon steel rods cover general and structural joints and pipe roots. Stainless rods are matched to the base grade and to the corrosion and service requirement of the finished joint. Nickel alloy rods are used for corrosion-resistant service and for dissimilar joints. Aluminium rods are selected against the aluminium alloy being welded and the crack-sensitivity of the joint. Copper alloys and other families are supplied where specified. All of these are alloy options within this canonical product, selected against the base metal — separate public pages are not created per alloy grade.

Rod diameter is matched to material thickness and joint size: thin rods for sheet, tube and root runs where heat input must stay low, larger rods for fill passes on heavier sections. Standard cut lengths are typical, with length affecting handling more than metallurgy. Because the welder feeds the rod manually, diameter choice has a direct effect on control, bead profile and the number of passes required.

Argon is the usual shielding gas, with argon-helium mixtures used where extra heat input is wanted on thicker or highly conductive material, and specific mixtures used for particular alloys. On stainless and nickel alloy pipe, the underside of the root also needs protection, so a back purge is normally part of the procedure. Gas selection, flow and purging requirements come from the procedure and the manufacturer's recommendations for the filler supplied.

Available specification dimensions include alloy family and grade, AWS classification, rod diameter, cut length, surface condition, base-metal compatibility and packaging. Manufacturer grade names and codes remain supplier data.

Rods are usually supplied in tubes or boxes by weight, with alloy identification marked per the manufacturer's practice. Pack weight and format are confirmed for the grade quoted.

CWB / CSA W48 certification, AWS classification and any marine or pressure-equipment approvals (ABS, DNV, LR, CCS and similar) are confirmed for the exact manufacturer, grade and, where applicable, manufacturing location offered. Allzone makes no blanket approval claim on this generic product page, and one supplier's certification is never applied to another supplier's consumable.

Typical documentation — manufacturer technical data sheet, safety data sheet, chemical and mechanical test certificates, impact and diffusible hydrogen data, and certification records where they exist — is provided subject to the exact supplier and grade quoted. Availability is confirmed at quotation rather than assumed.

Send the base metal and grade, material thickness, joint type and whether root passes are involved, the alloy family required, any required AWS classification, rod diameter and length, shielding and purge gas available, whether CWB / CSA W48 or another approval is mandatory, quantity and delivery location.
